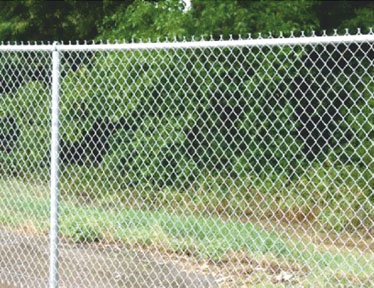

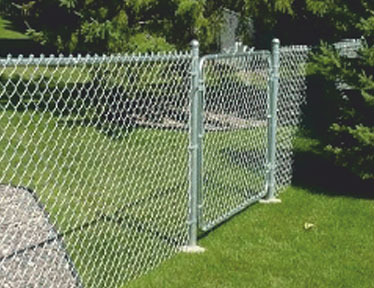

Chain Link Fence fabric is a fencing material made of steel wire
Helically wound and inter woven in such a manner as to provide
a continuous mesh without knots or ties except in the form of
Knuckling or twisting the ends of the wires to form the selvage
of the fabric.
It is the latest in fencing material and is most economical concept
in modern fencing. It lasts a lifetime and can be easily installed
and reinstalled by securely affixing it to reinforced cement poles,
angle iron poles, pipe poles or wooden poles.
It is manufactured in G.I wire, PVC (Vinyl) Coated wire, Aluminum
Alloy wire or Stainless Steel wire. The mesh size for fencing
purpose varies from 1" to 4" mesh and from 14 gauge wire to
6 guage wire. The height can be from 2ft to 14ft as suitable for
application to application.
We at Nayyar Steel Industries Manufacture Chain
Link Fencing completely automatic both in square and diamond
mesh. The packing can be in conventional rolls or compacted rolls.
a = Mesh Size = 25mm, 50mm, 75mm
b = Wire diameter = 2.50mm, 3.0mm, 4.00mm
Standard Dimensions for PVC Chain Link
a = Mesh Size = 50mm, 75mm
b = Wire diameter = 2.20 - 3.20mm, 2.50 - 4.00mm, 3.00 - 4.00mm
Normal Width
HT = 1mtr., 1.50mtr., 2.00mtr., 2.40mtr.,
Normal Length
15mtr., 20mtr., 25mtr., 30mtr.
Packing both in Conventional Rolls / Compact Rolls
